New technologies for greatly saving energy, reducing consumption and increasing production of cement kiln with calciner system

——The calciner connected in parallel with external double furnace body,which make the clinker output increased by more than 40%

Ⅰ Starting point of technical transformation: on the premise that the precalciner can no longer be raised and roughened, and the upper preheater still has room to increase the production, if we want to increase the production again, we can only increase the furnace capacity first, and we can add a new furnace body in parallel next to the original furnace body to increase the total volume of the precalciner.

Ⅱ Specific plan（Under the premise of sufficient capacity of other equipments, especially grate cooler）

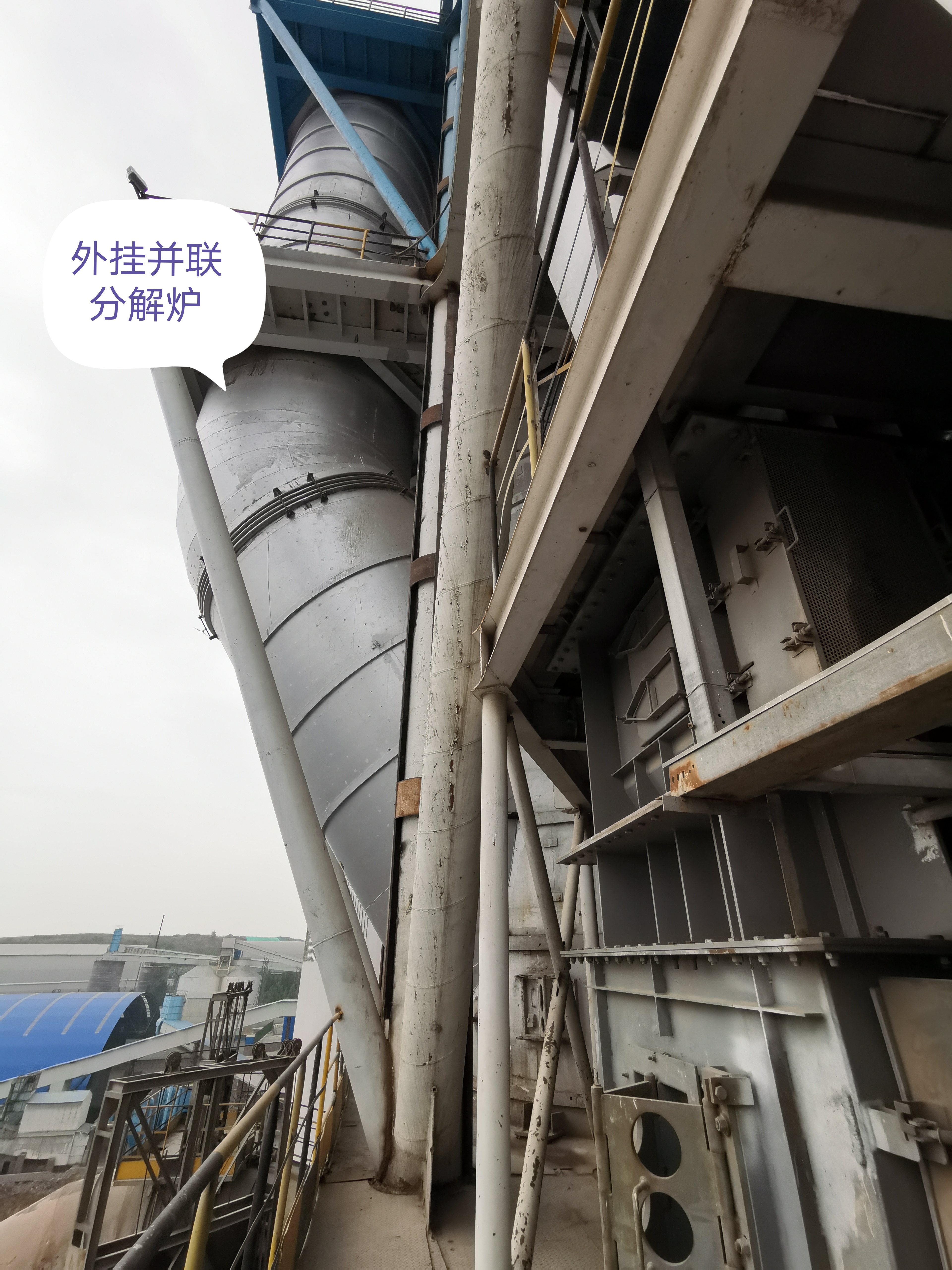

1、 The parallel decomposing furnace body is added;

2、 The inlet of C5 cyclone and C4 cyclone continued to expand upward, expanding the two-stage cyclone top cover into

an upward spiral surface;

3、 If the capacity of raw material preparation and pulverized coal preparation system is not enough, the parallel small-

scale vertical grinding can be used to supplement the output.
